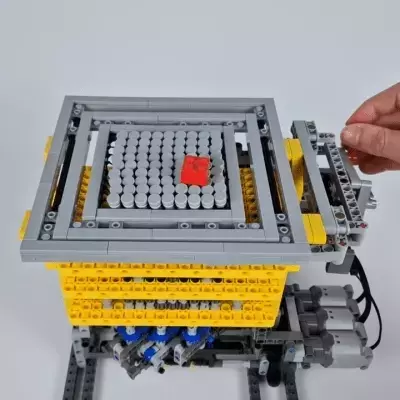

A unique LEGO creation by Banana Gear Studios has captured attention with its innovative design of an omnidirectional treadmill. This project not only demonstrates exceptional problem-solving skills but also showcases the versatility of LEGO pieces in complex mechanical systems.

Discover the Intricacies Behind the Revolutionary LEGO Design

The journey to building this intricate LEGO contraption was far from simple. The challenge lay in constructing a 9x9 grid of shafts that could rotate harmoniously, each piece moving in perfect unison. The core concept involves placing an object on a bed of identical rotating discs. By tilting these discs, one can control which edge comes into contact with the object, dictating its direction of movement. However, translating this theory into practice presented numerous obstacles.

The Challenge of Synchronicity

LEGO components offer a vast array of mechanical functions, yet aligning a dense 9x9 array of discs proved daunting. Traditional gears were insufficient due to the proximity of the shafts, which left little room for gear interaction. Engineers at Banana Gear Studios had to think outside the box. They devised a modular approach, breaking the grid into smaller 3x3 sections. Each segment was self-contained and built vertically with gimbals to accommodate the necessary gearing adjustments. Small elastic bands were used to transfer power between adjacent segments, ensuring seamless rotation across the entire grid.The elegance of this solution lies in its simplicity and effectiveness. By dividing the project into manageable parts, the team overcame the limitations posed by the tight spacing of LEGO elements. This modular strategy allowed for efficient assembly and replication, ultimately forming the complete 9x9 matrix. The result is a beautifully synchronized system where each disc moves as one, creating a fluid motion that defies expectations.

Innovative Tilting Mechanism

Once the rotational aspect was addressed, the next challenge was to develop a mechanism for tilting the discs. This feature is crucial as it determines the direction of the object's movement. The engineers designed a tilting system that integrates seamlessly with the existing structure. The complexity of this task cannot be understated; it required meticulous planning and precise execution.To achieve this, they incorporated a series of levers and actuators that allow for controlled tilting. These components work in tandem with the rotating discs, ensuring smooth transitions between different angles. The tilting mechanism adds an extra layer of functionality to the treadmill, transforming it from a static model into a dynamic tool capable of multidirectional movement. This innovation opens up possibilities for various applications, from educational demonstrations to potential use in virtual reality environments.

Comparisons and Intellectual Property Concerns

While some may draw parallels to Disney’s 360° treadmill, the LEGO version employs a technically distinct implementation. This differentiation is significant as it avoids potential patent issues. In today’s world, intellectual property rights are a critical consideration, especially for creators sharing their projects online. Banana Gear Studios took care to ensure their design was unique, allowing them to share their creation freely without fear of legal repercussions.The team’s commitment to originality underscores the importance of innovation in the maker community. It highlights the value of exploring new methods and solutions, even when faced with existing technologies. This approach not only fosters creativity but also promotes a culture of open sharing and collaboration, enriching the field of engineering and beyond.

Implications for Future Projects

This LEGO omnidirectional treadmill serves as a testament to the boundless potential of LEGO as a medium for advanced engineering. It challenges conventional thinking and pushes the boundaries of what is possible with interlocking plastic bricks. The success of this project opens doors for future innovations, inspiring others to explore unconventional uses of familiar materials.Moreover, it emphasizes the importance of problem-solving and adaptability in engineering. The techniques employed by Banana Gear Studios can be applied to other projects, offering valuable lessons for both seasoned professionals and aspiring engineers. As technology continues to evolve, the principles demonstrated here will remain relevant, guiding the development of new and exciting creations.
